Product Samples

Resin Insert Component with Thread (Nickel–Zinc Alloy Plating)

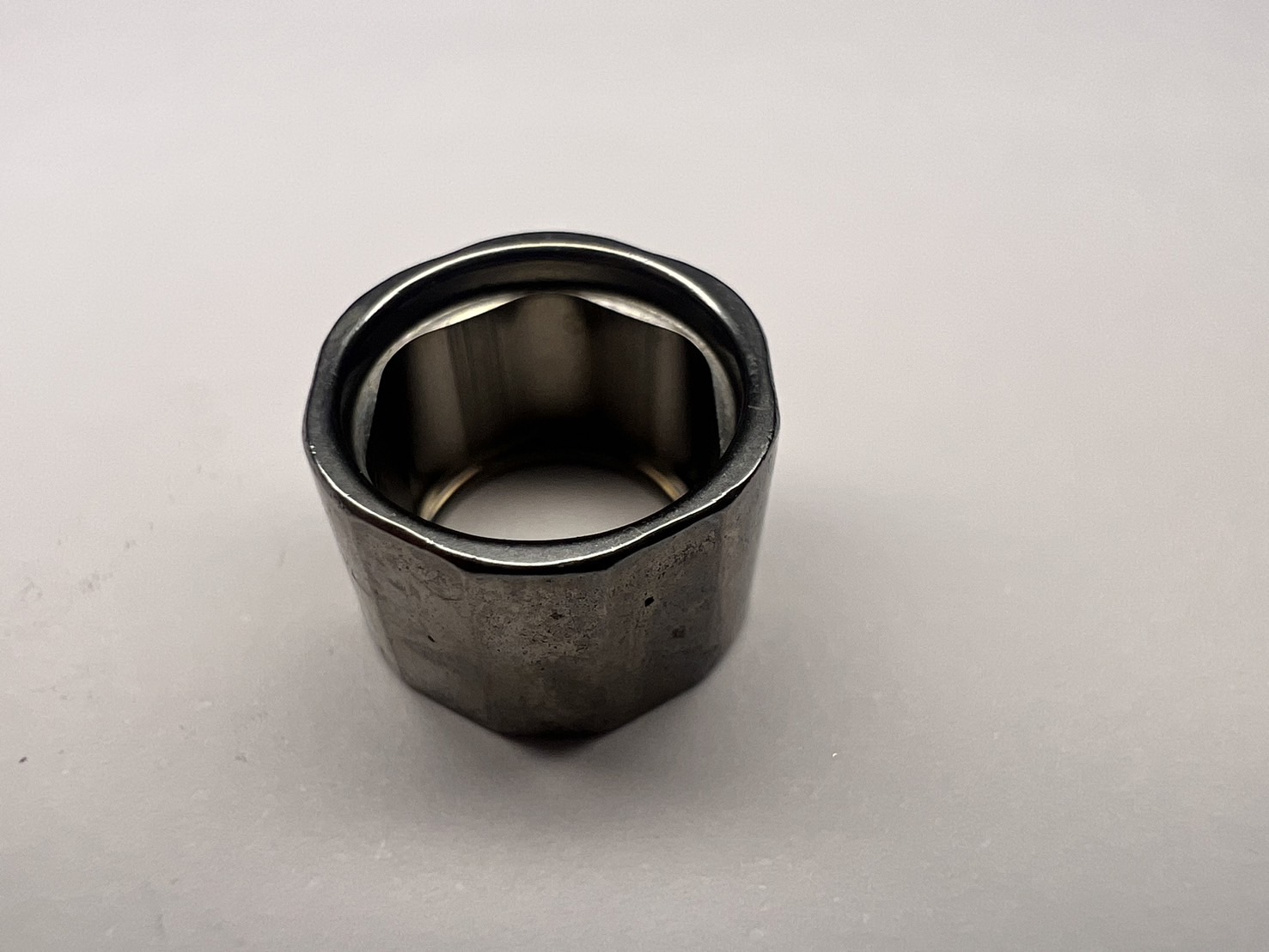

Cold-Forged Component – Hexagonal Inner & Outer Diameter

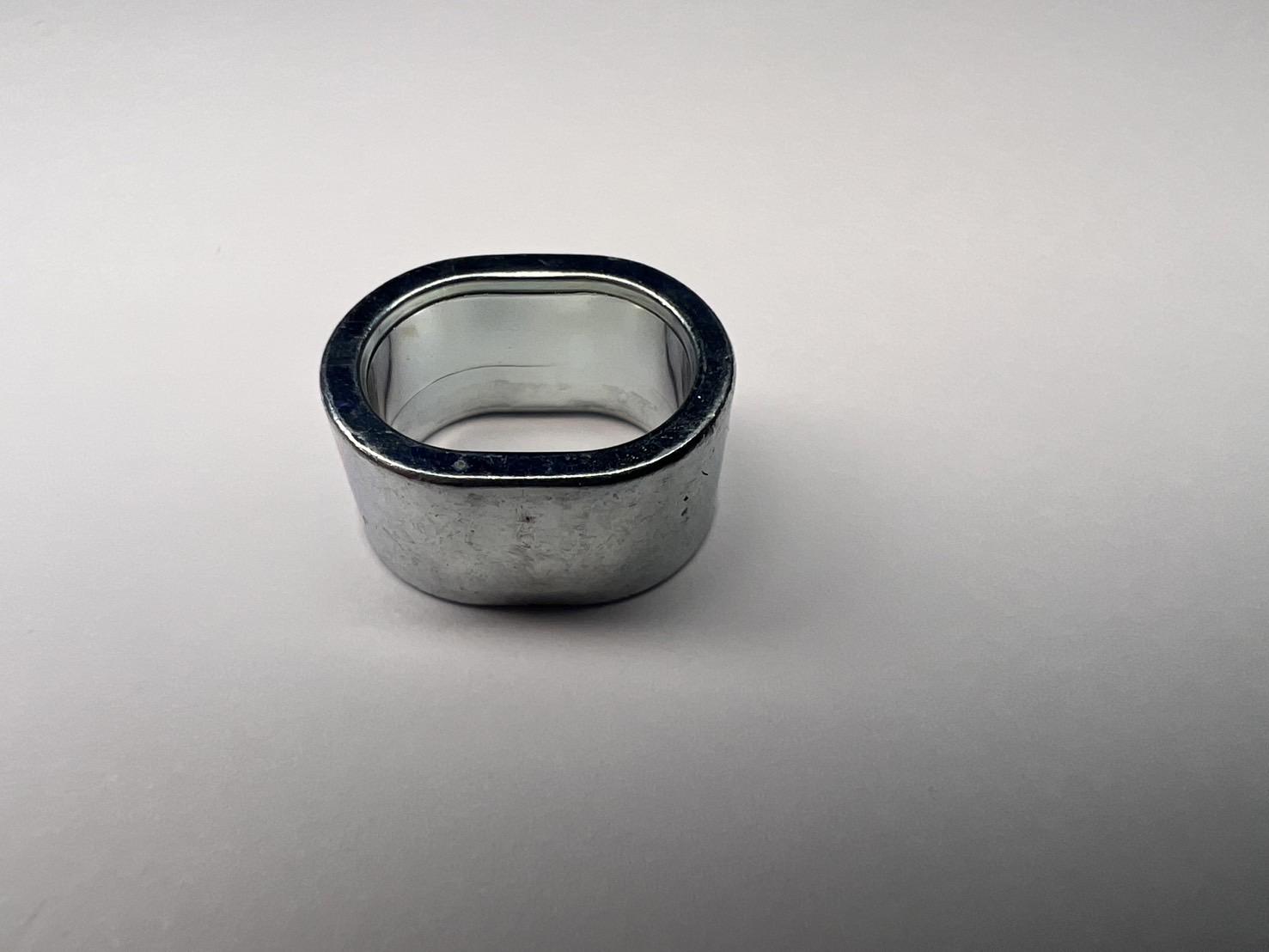

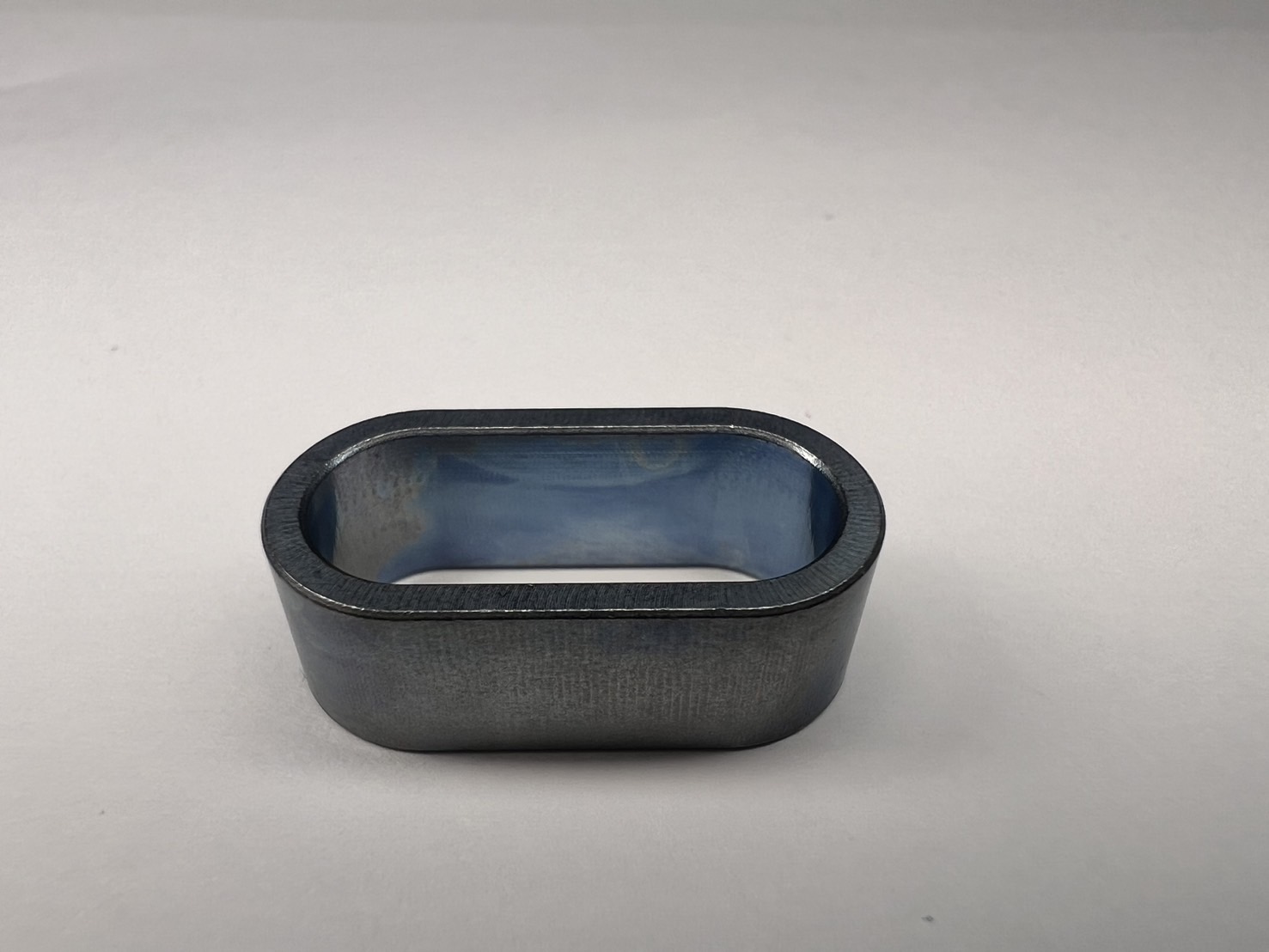

Cold-Forged Component – Elliptical Through-Hole

Aluminum Machined Component

Double-End Swaging (Annealed)

Double-End Swaged Component (Annealed)

Single-End Swaging (Annealed)

Through-Hole Component (L33 mm)

Shaft Outer Diameter Grinding ±0.003

Single-End Swaged Component

Through-Hole Component – 1.1 mm Wall + OD Grinding

Machined Component – Geomet® Coating

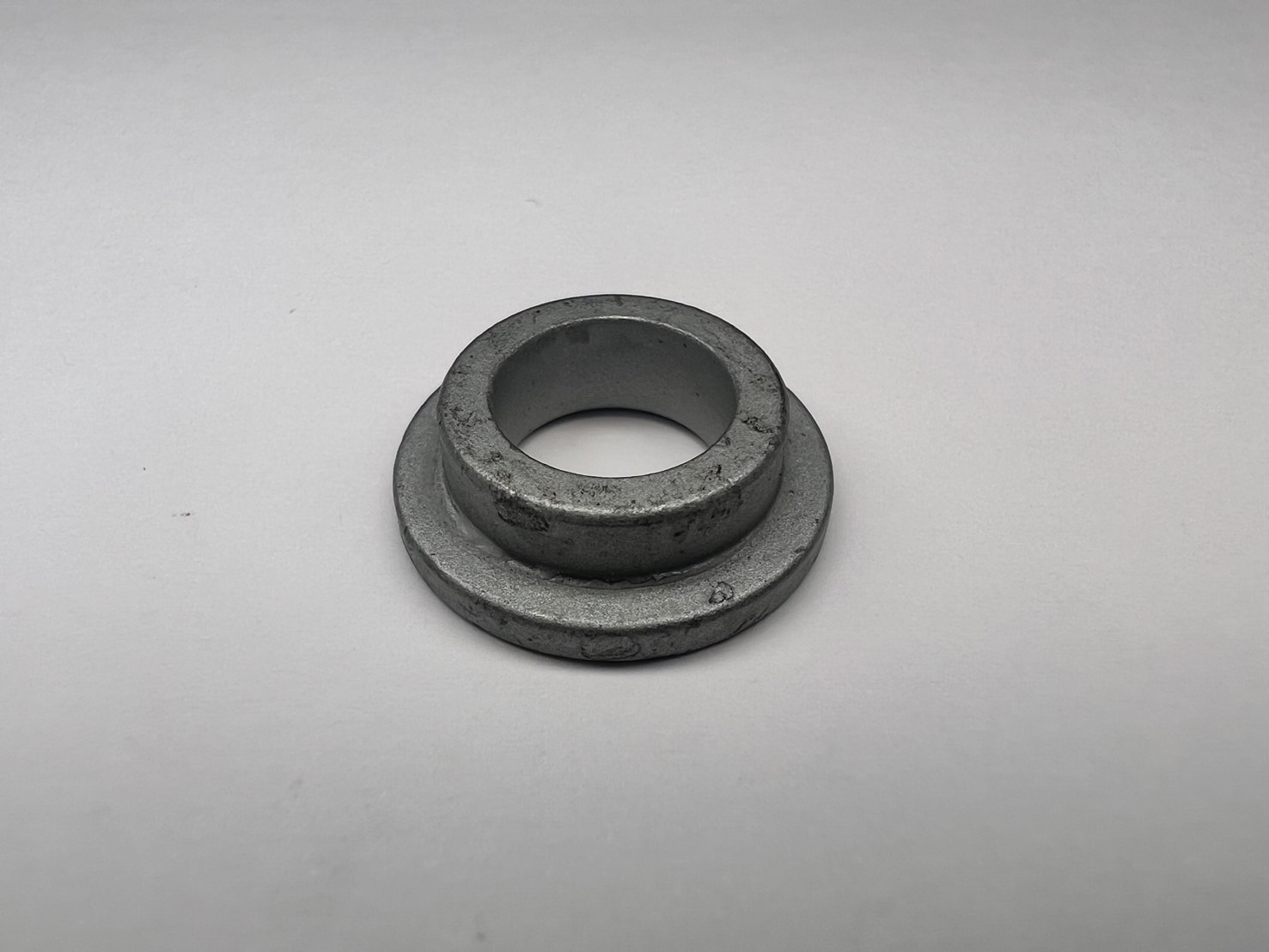

Cold-Forged Component – Geomet® Coating

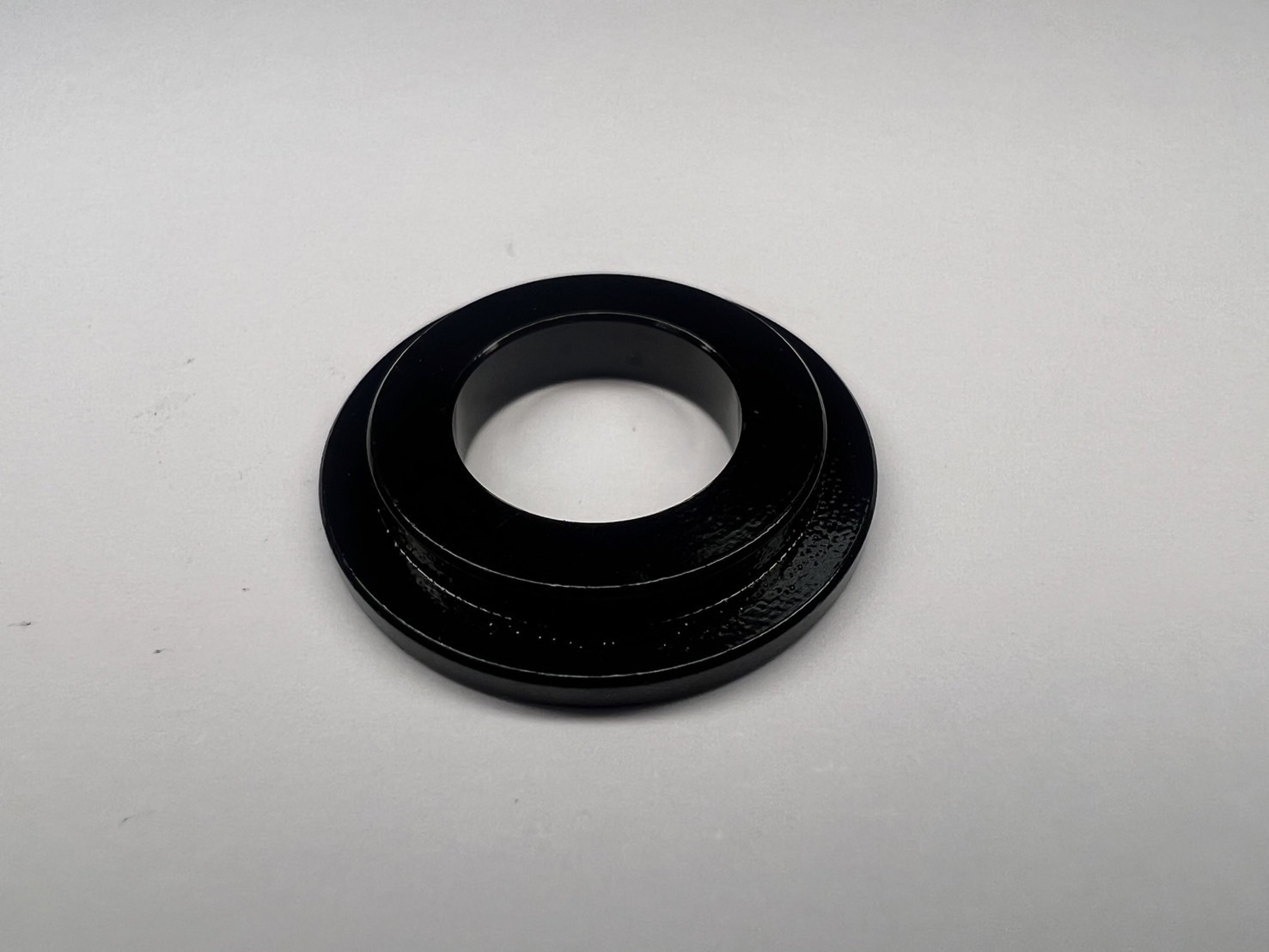

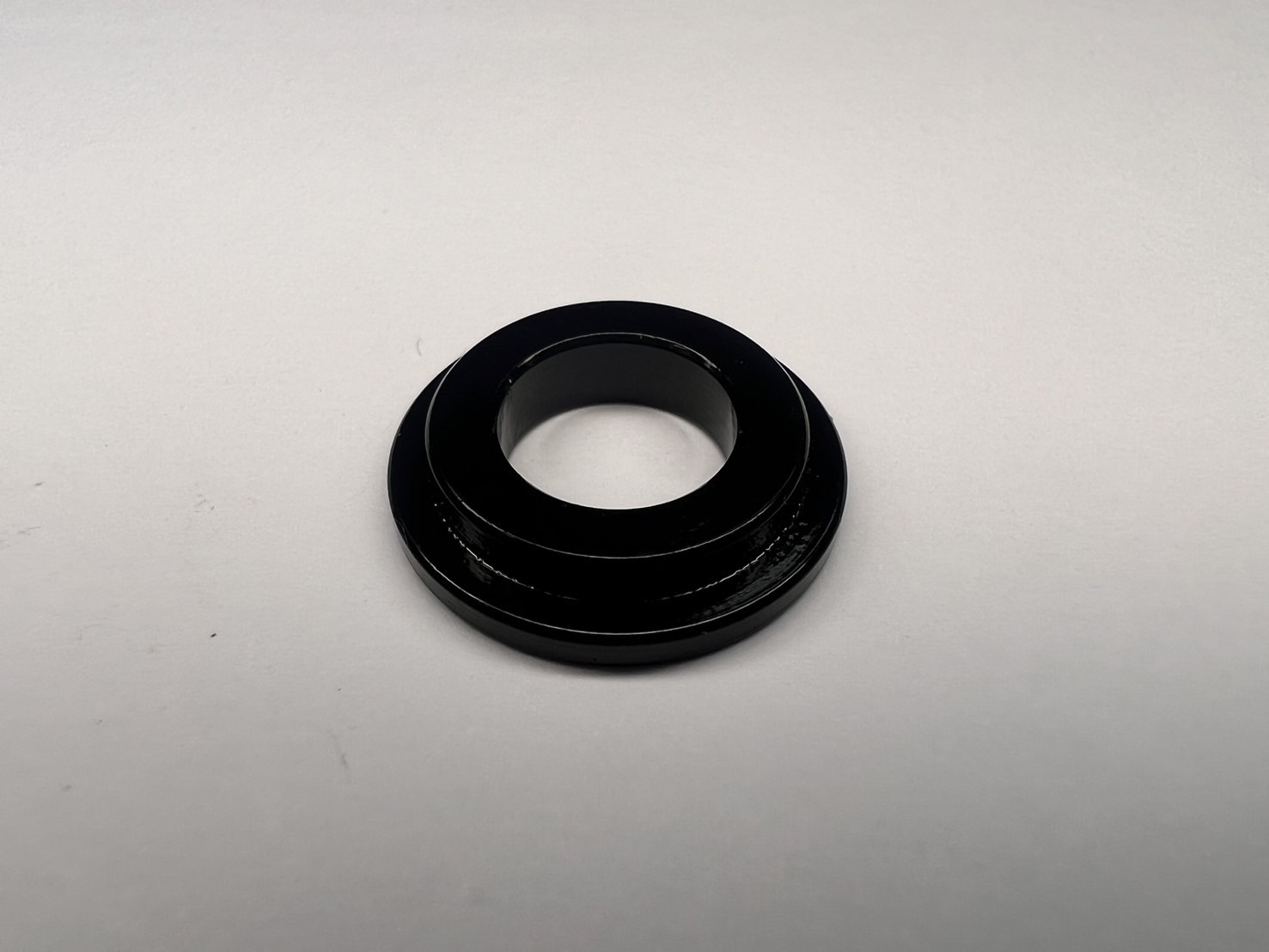

Machined Component – Cationic Electrodeposition Coating

Machined Component – Cationic Electrodeposition Coating

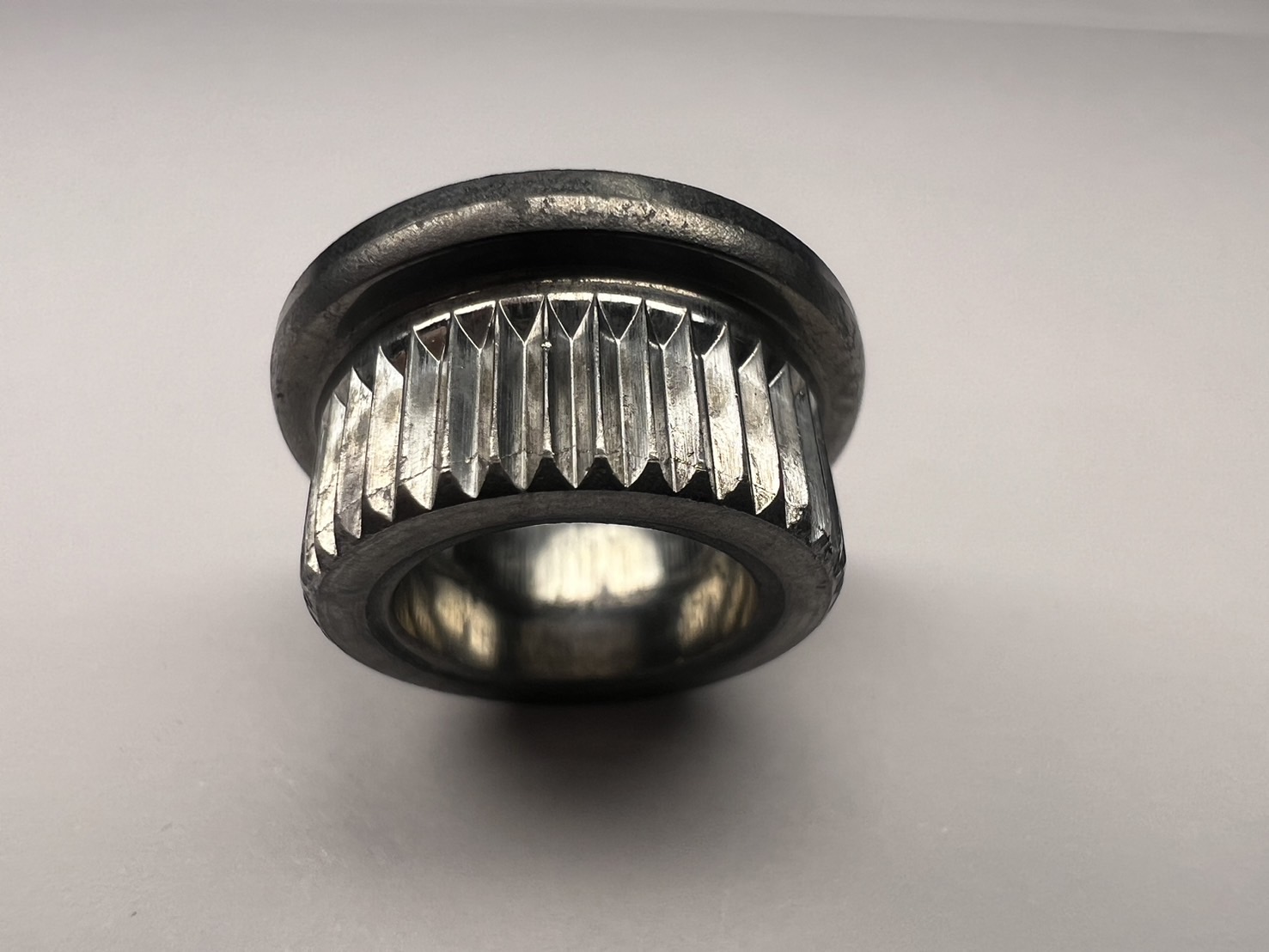

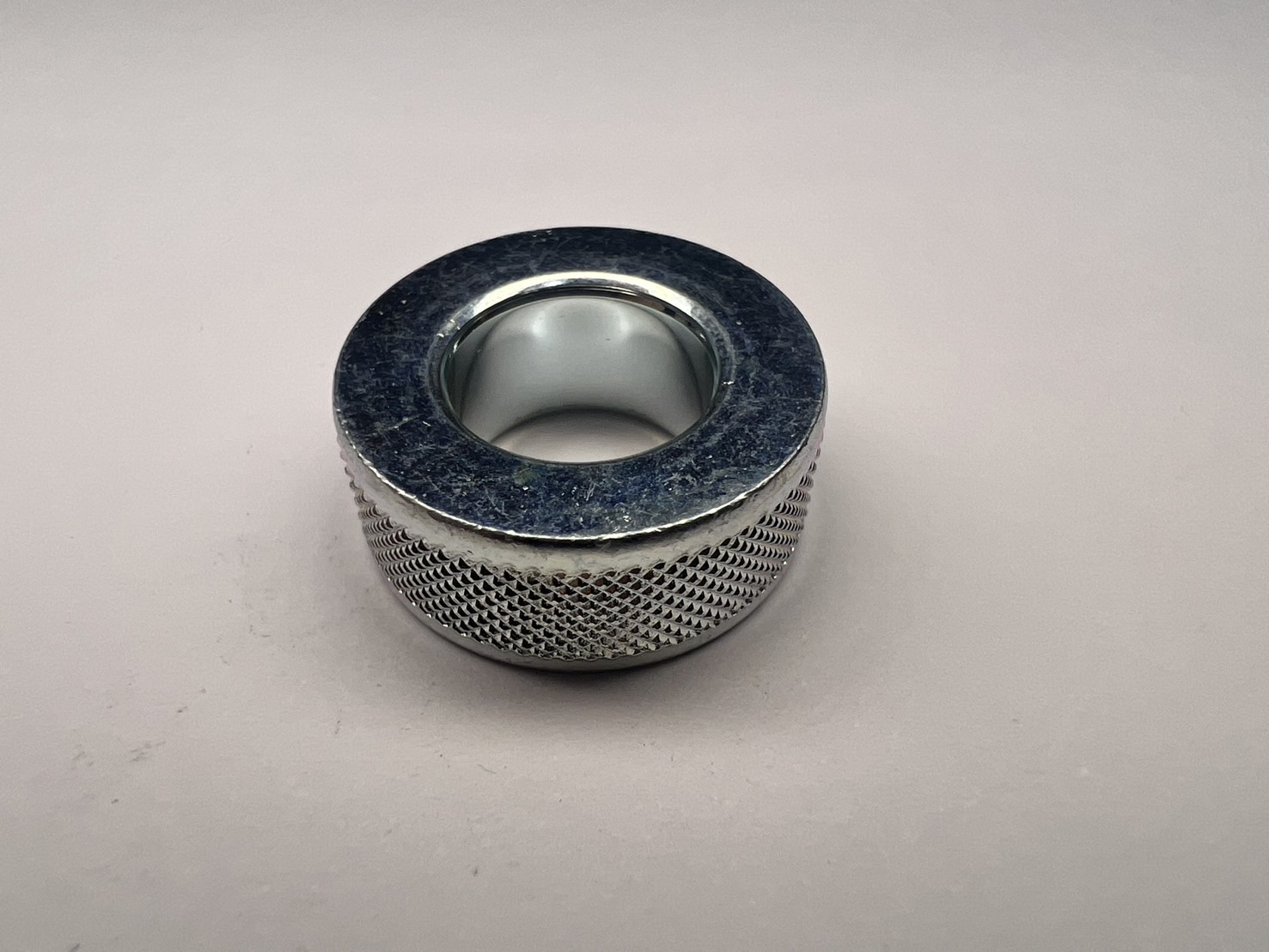

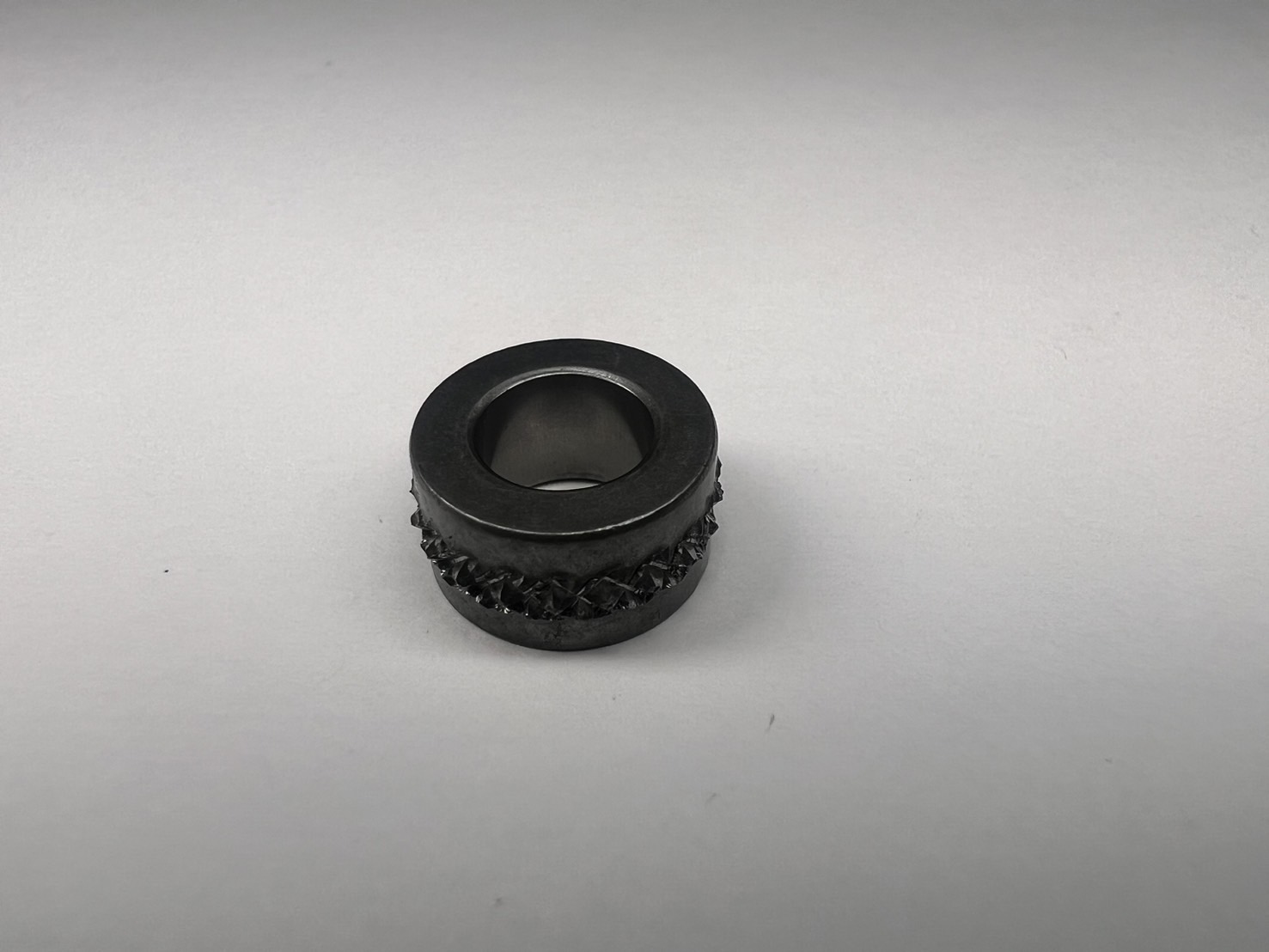

Cold-Forged Component – OD Diamond Knurl + Trivalent Chromate

Functional Component – Straight Knurl (Cold Heading Process)

Post-Forging Diamond Knurling

Elliptical Machined Component

Machined Component

Resin Insert Component with Thread (Copper Undercoat + Nickel Plating)

SUS430 Cold-Forged Through-Hole Component

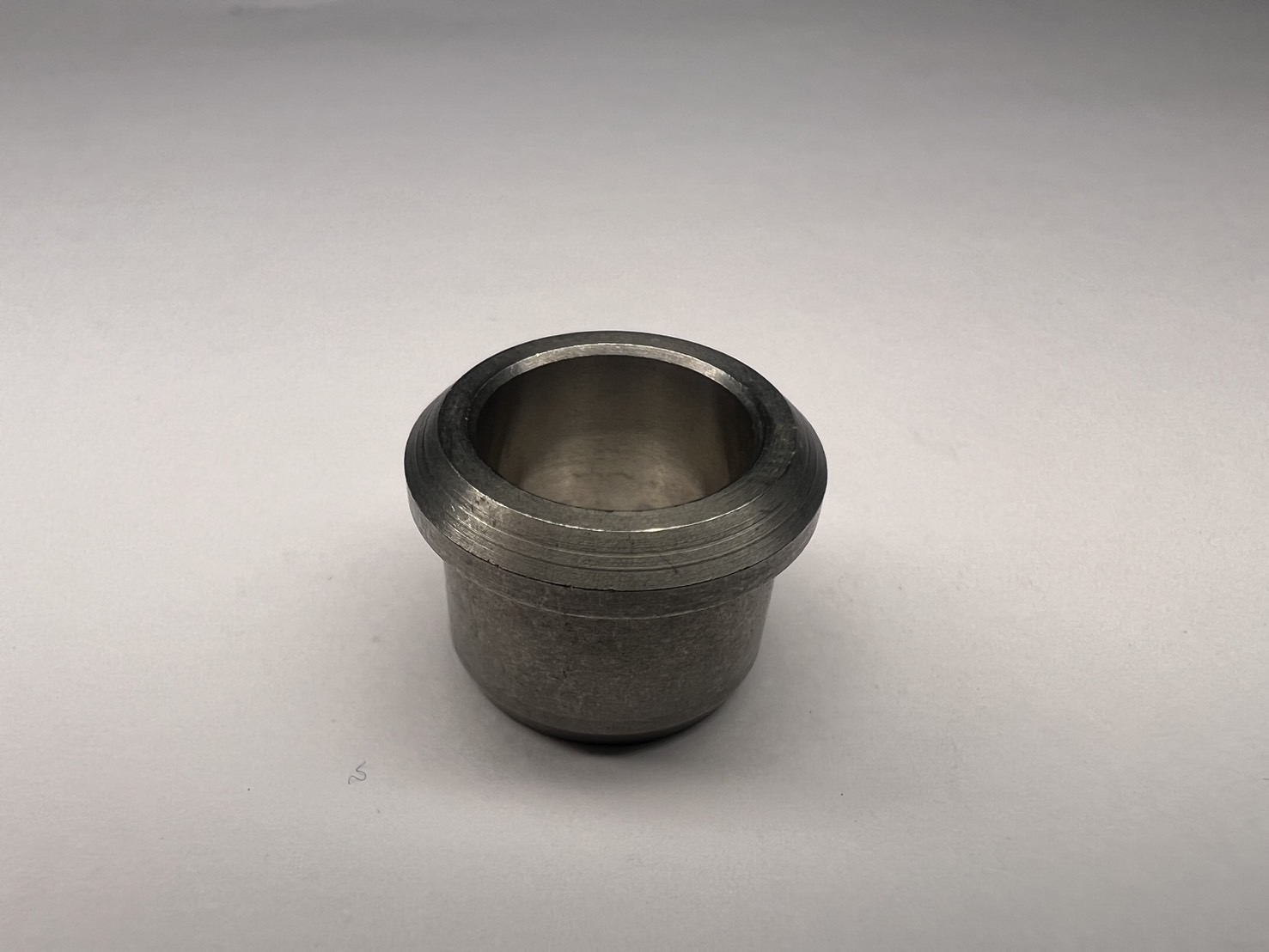

Flanged, Stepped Through-Hole Component

Flanged, Stepped Through-Hole Component

SUS430 Rivet

Machined Component – End-Face Knurl + Inner Groove, Single Process

SUS303 Machined Component

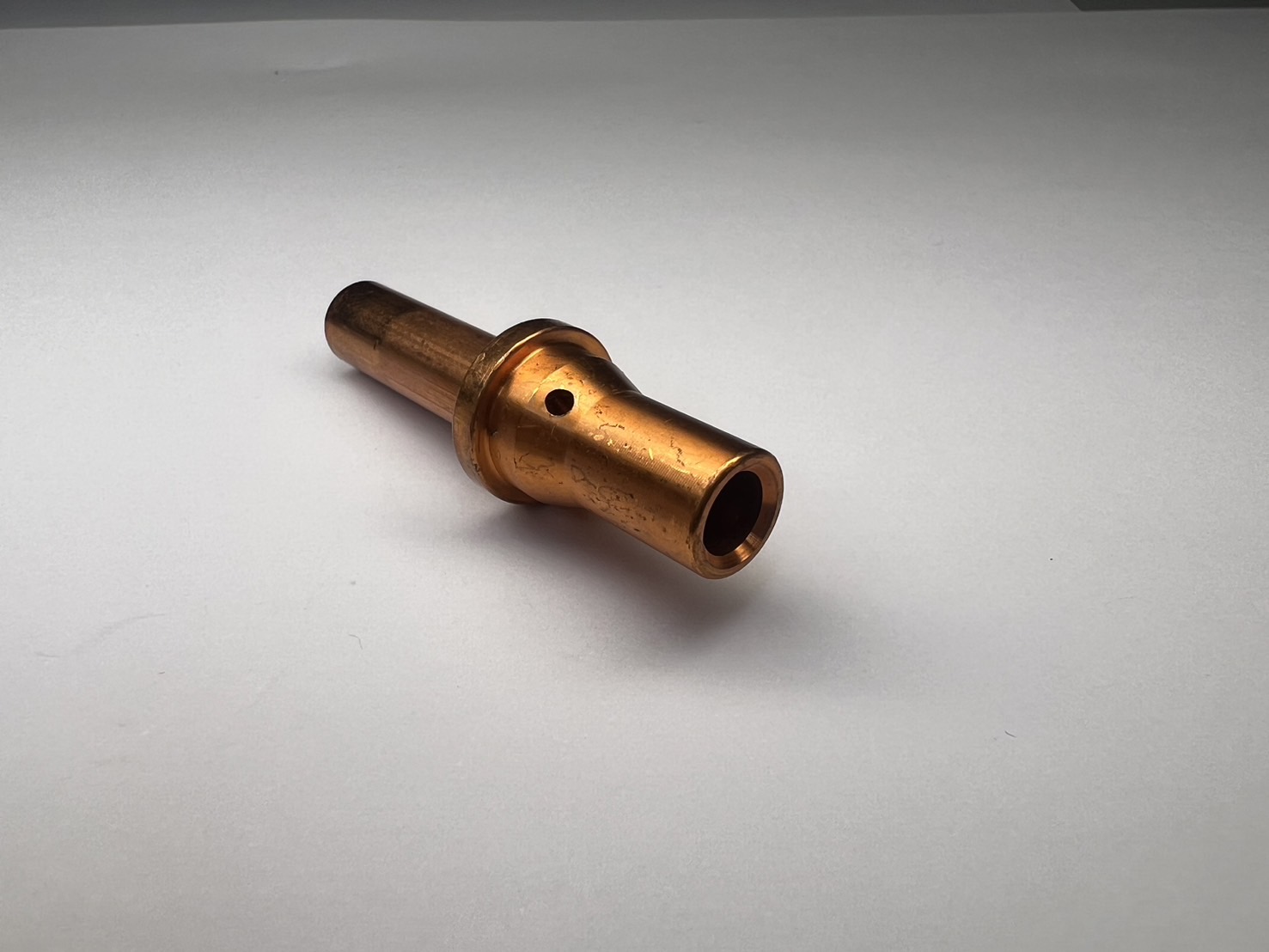

Pure Copper Cold-Forged + Machined Component (OD Turning + Lateral Small-Hole Drilling, Single-Chuck)

Pure Copper Cold-Forged + Machined Component

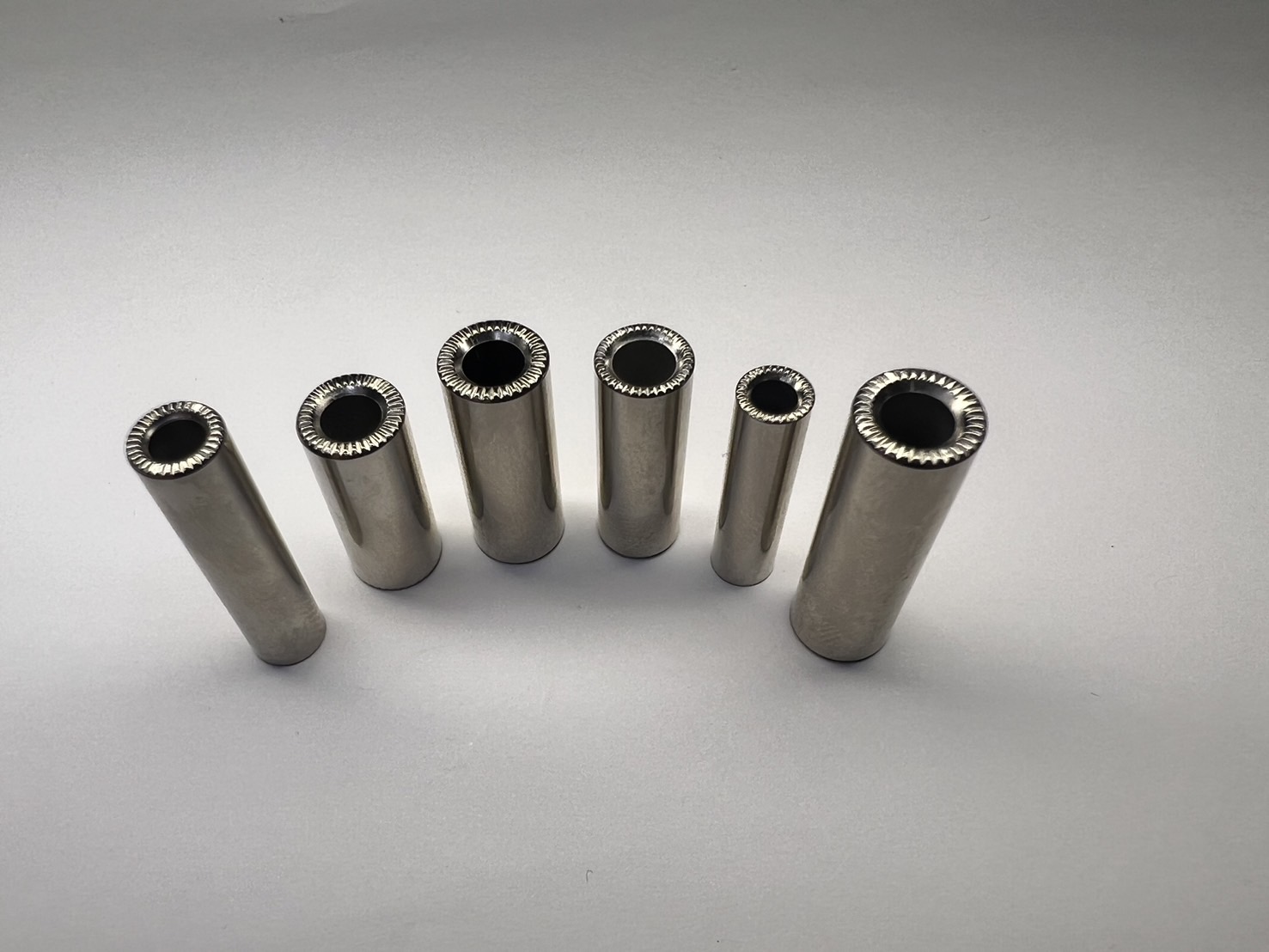

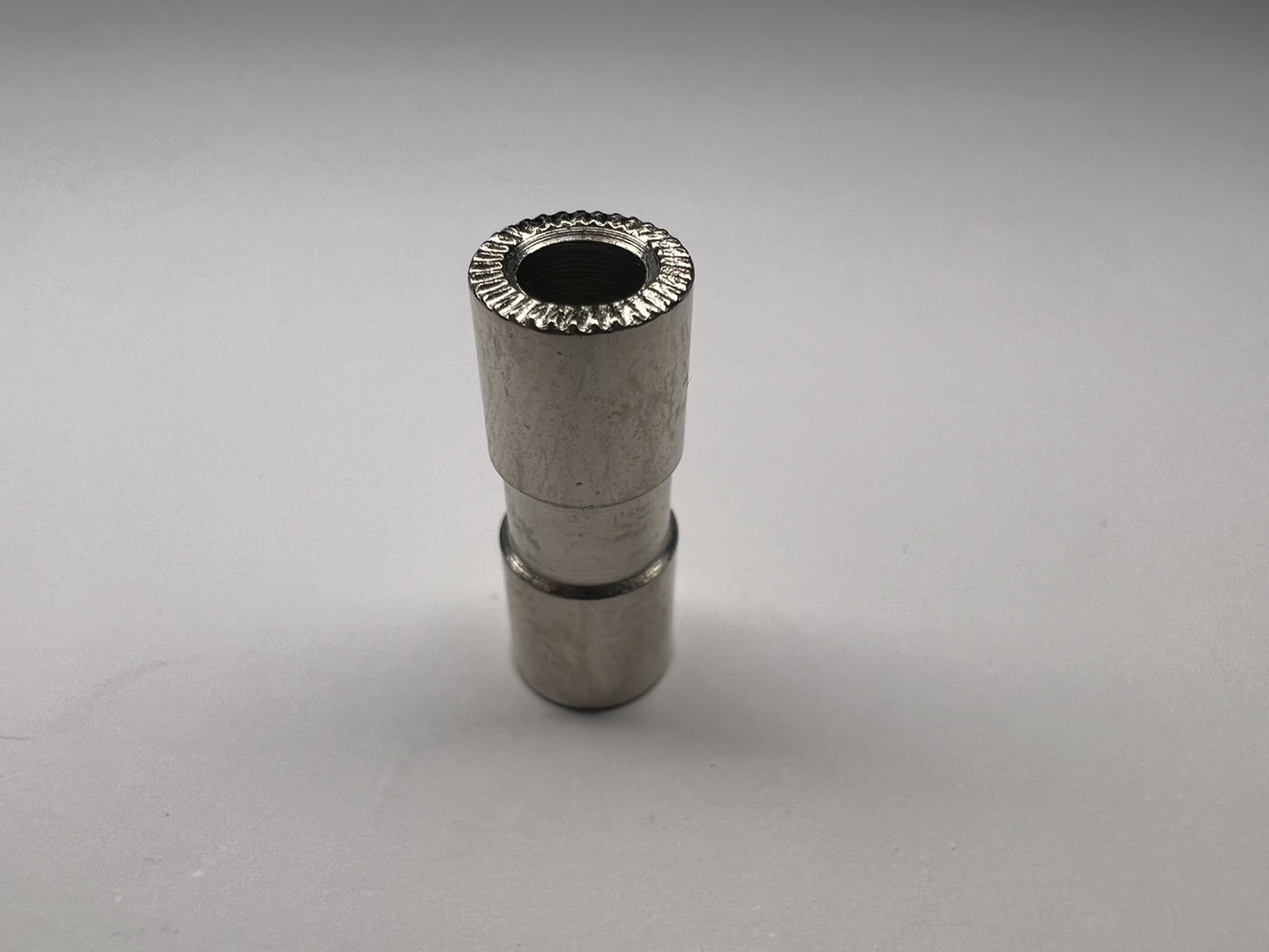

Cold-Forged Through-Hole Component with End-Face Knurl, L16–28 mm, Φ6–13 mm

SUS430 Machined Component – Inner/Outer Diameter ±0.01

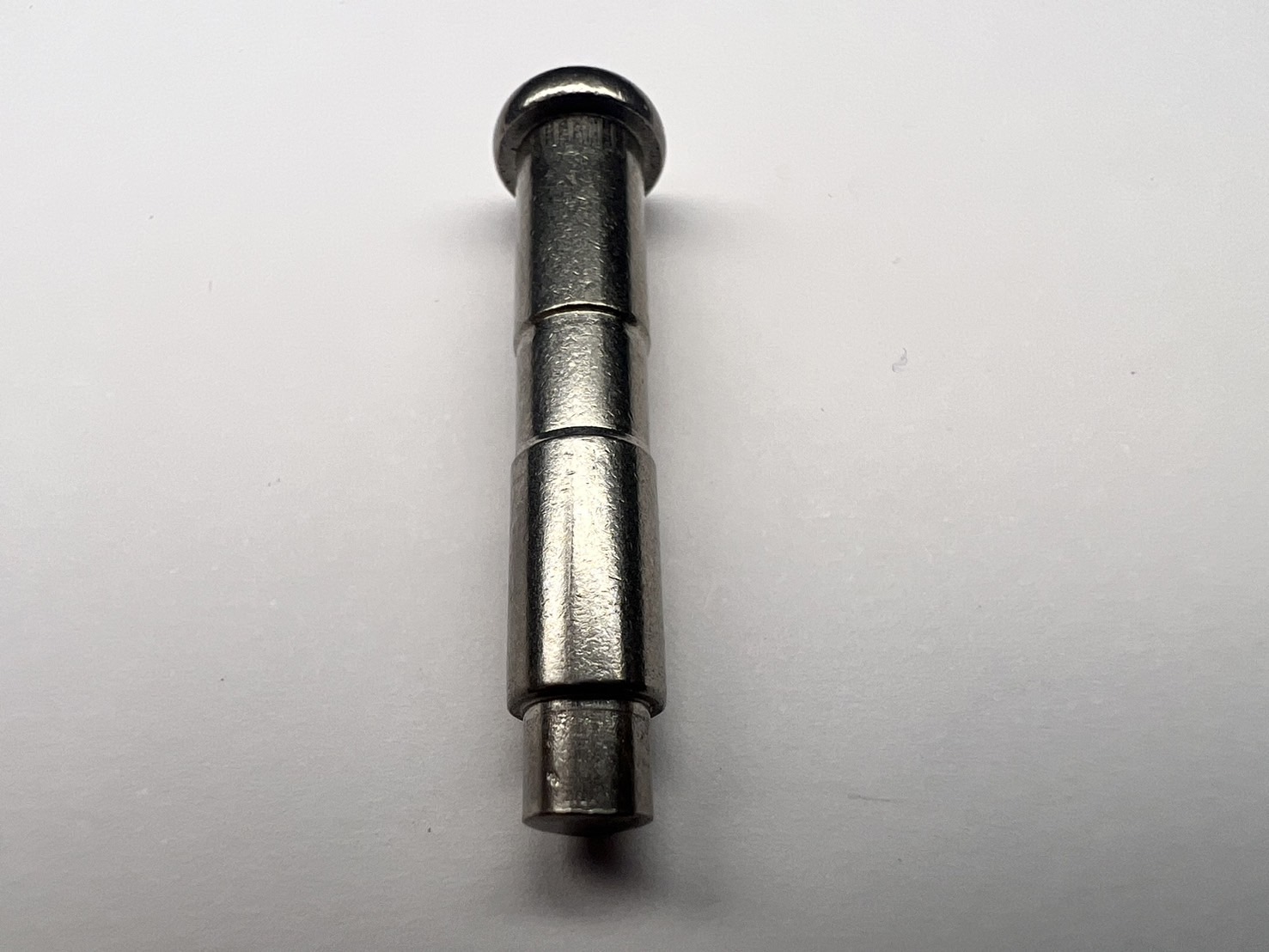

Cold-Forged Stepped Rivet with Inner Groove

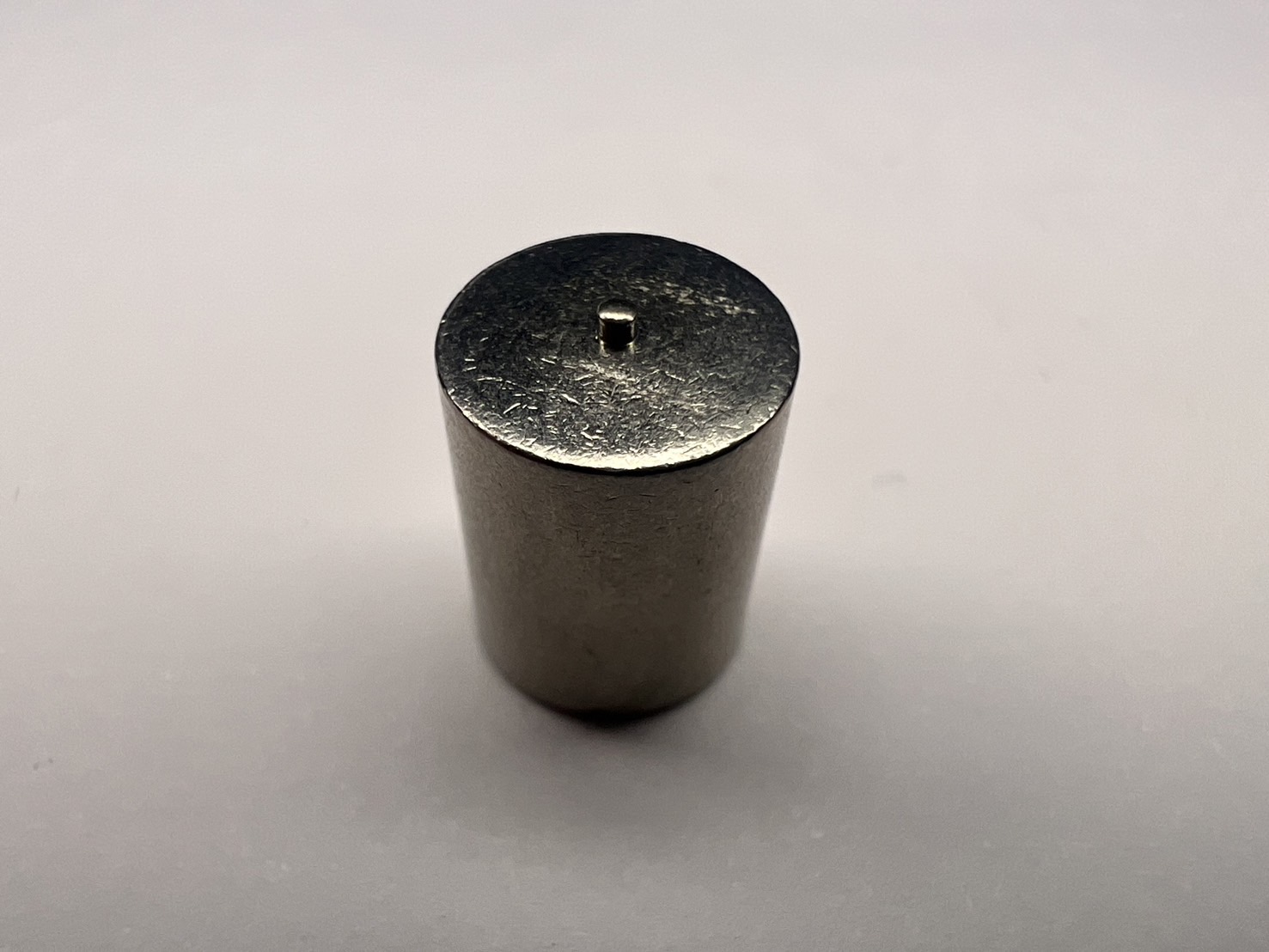

Cold-Forged Component – Blind Hole with Protrusion

Cold-Forged Component – Blind Hole with Protrusion

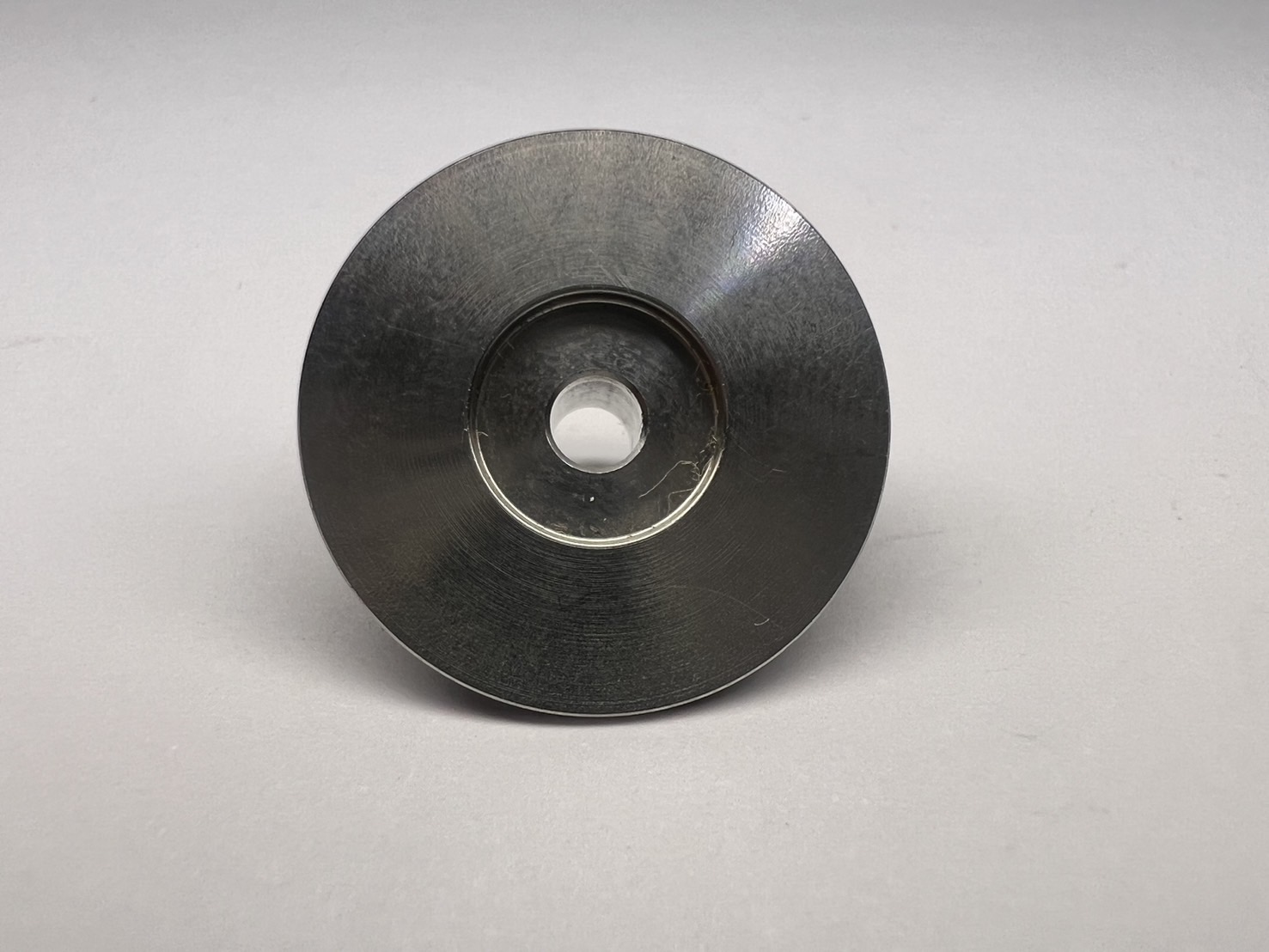

Machined Component – Flange Thickness 0.6 mm, ID 3 mm

Machined Component – Flange Thickness 0.6 mm, ID 3 mm

Cold-Forged Component – 2-Die 3-Blow

Cold-Forged Through-Hole Component (L36 mm)

Irregular-Shaped Component with Deep Hole

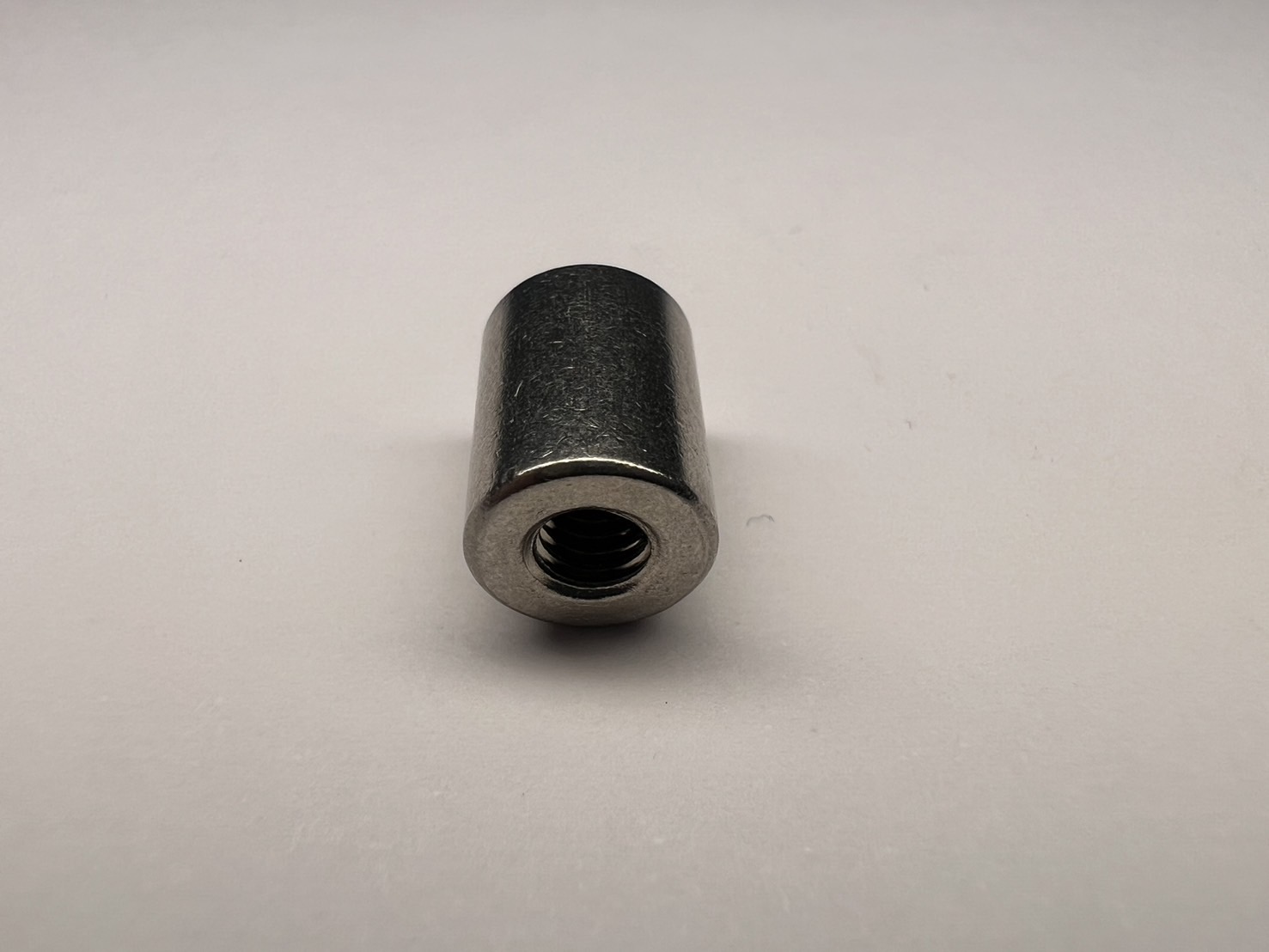

Blind-Hole Nut (M3)

Hexagonal Intermediate Flange – 2-Die 3-Blow

SCM435 Intermediate Flange – Deep Square Hole, Stepped Component

Flanged, Stepped Through-Hole Component

Irregular-Shaped Component – Deep Hollow (20 mm)
